Five Small Foil Setup Changes That Can Transform Your Next Session

One of the best things about foiling is how much you can change the way a setup rides without replacing the entire thing. A few millimeters of mast movement, a different stabilizer shim, or a change in wing size can make a familiar foil feel noticeably different underfoot. That adjustability also makes it easy to overcomplicate things. If your foil feels difficult to control, slow to lift, overly sensitive, or just slightly off, the answer isn’t necessarily a new setup. Before you start shopping, experiment with what you already have. The key is to start with a setup you know and change one variable at a time. Here are five adjustments worth experimenting with.

1. Move Your Mast Forward or Back

Start with the easiest adjustment: mast position. Most foil boards use tracks that allow you to move the mast forward or backward. Even relatively small changes can alter the balance of the setup and where you need to apply pressure through your feet.

Moving the mast forward generally shifts the foil’s lift forward relative to your stance. If you feel like you’re constantly loading your back foot to get onto foil or keep it flying, moving the mast slightly forward may create a more balanced stance. Move it too far forward, and you may find yourself applying excessive front-foot pressure to keep the foil from climbing.

Moving the mast backward has the opposite effect. It can calm down a setup that feels eager to rise and shift the balance toward more back-foot pressure. Don’t make huge adjustments. Start with a few millimeters, ride the setup, and pay attention to where your weight naturally settles. Once you find a position you like, mark it. That gives you a reliable baseline for future adjustments.

2. Experiment With Stabilizer Shims

The stabilizer is much smaller than the front wing, but a small change at the tail can significantly affect how the entire foil behaves. Many foil systems use shims to alter the stabilizer angle. Depending on the foil design and shim orientation, changing that angle alters the relationship between the front wing and stabilizer. The result can be a noticeable change in pitch balance, foot pressure, and how readily the foil responds to rider input.

That makes shimming useful when a setup feels close, but not quite right. Start with the manufacturer’s recommended or neutral configuration. From there, make one incremental change and ride it before going any further.

Also pay attention to the specific instructions for your foil. Shim orientation and the effect of adding or removing angle aren't universal across every system. A setup change that works one way on one foil may produce a different result on another.

3. Adjust Mast Rake

Mast rake is easy to overlook because the adjustment can be tiny. A thin shim between the board and mast plate changes the angle of the mast relative to the board. That can affect the attitude of the board while you’re flying.

This becomes particularly useful if you use the same foil with multiple boards. Track placement, bottom shape, rocker, and stance position can differ between boards, so a foil that feels perfectly balanced under one board may require a slightly different setup under another. A rake adjustment can help bring the board into a more comfortable riding position without forcing you to compensate constantly through your stance.

Approach this adjustment conservatively. Start with the foil and board manufacturer’s recommendations and make small changes from there. A little adjustment goes a long way.

4. Swap Your Front Wing

Technically, swapping a wing is more involved than sliding your mast a few millimeters. Still, if your foil system accepts multiple front wings, it’s one of the most effective ways to adapt your setup to different conditions.

More front-wing area generally means more lift at lower speeds, which can help in weak surf or when you want to get onto foil earlier. Moving toward a smaller wing generally requires more speed to generate lift but can reduce drag and create a faster, more responsive setup.

Surface area isn't the only variable, either. Aspect ratio, span, profile, and wing design all influence how a foil generates lift, glides, turns, and responds to input. Instead of thinking in terms of which wing is “better,” think about what the conditions require.

A small, weak day may reward additional lift and glide. When there’s more power available, you may prefer a wing that trades some low-speed lift for speed and maneuverability. If you own multiple compatible wings, riding them back-to-back is one of the easiest ways to understand just how much the front wing influences the entire setup.

5. Change Your Stabilizer

Changing the stabilizer is a more subtle adjustment than swapping out your front wing. Different stabilizer sizes and shapes can change pitch stability, turning characteristics, drag, and how much input the foil requires from the rider. A larger stabilizer may provide a more planted, predictable feel, while moving toward a smaller stabilizer can make a setup feel looser and more responsive.

As with front wings, design matters as much as dimensions. Two stabilizers with similar surface areas can behave differently because of their span, profile, and overall shape.

This is why stabilizer changes make the most sense once you already have a front wing you understand. Keep the front wing consistent, swap the stabilizer, and see what changes. You may find that you don't need an entirely different foil to get the performance you're looking for.

The temptation with foil tuning is to change everything at once. Move the mast, add a shim, swap the wing, and suddenly you’ve created a completely different setup. The problem is that you have no idea which change actually worked. Instead, establish a baseline and experiment methodically. Mark your preferred mast position. Keep track of the shims you're using. Know which front wing and stabilizer combination you started with. Then change one variable and go ride.

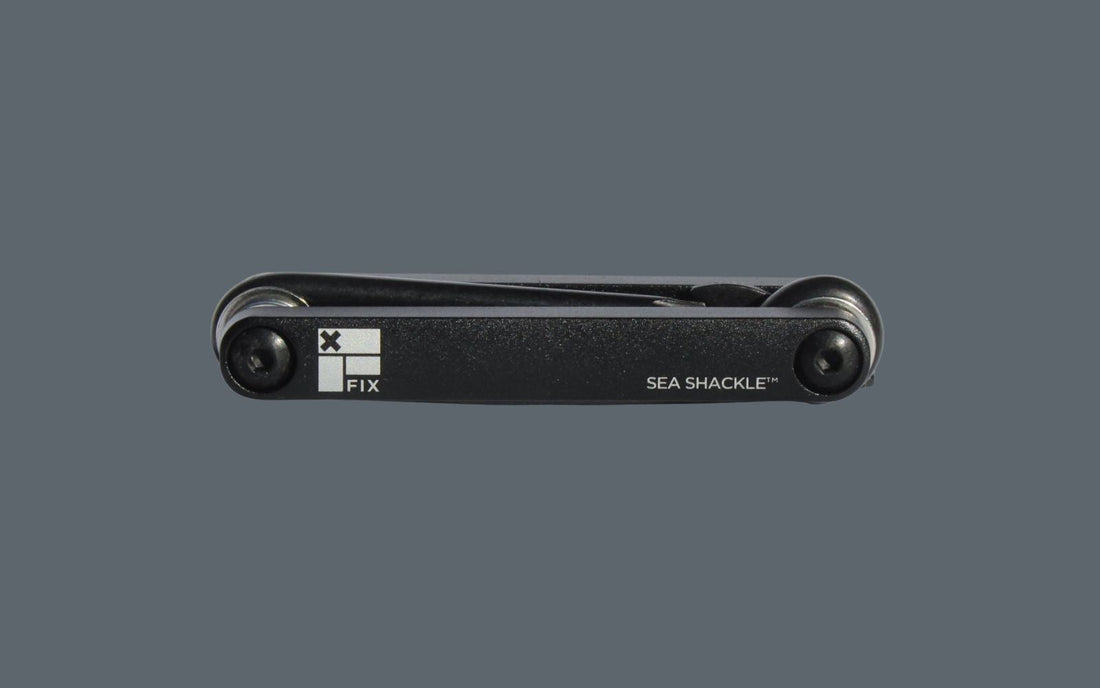

Having the right tools with you makes those experiments considerably easier. The Fix Manufacturing Sea Shackle™ Foil Tool keeps T30 and T40 Torx drivers together for compatible mast hardware, so you can make adjustments at the beach instead of waiting until you’re back home. Make a change. Ride it. Come back in. Adjust again.
